Material
01SS 316L
Chemical and effluent concentration
Key applications
Effluent concentration and ZLDSugar and molasses concentrationSalt manufacturingDairy product concentrationPharmaceutical liquid concentration
Working principle
Multi-effect evaporation and TVR
Vapour from one effect heats the next at a lower pressure, concentrating effluent in stages. Thermal vapor recompression recycles vapour enthalpy via a steam jet thermocompressor, reducing live steam demand versus standalone MEE.

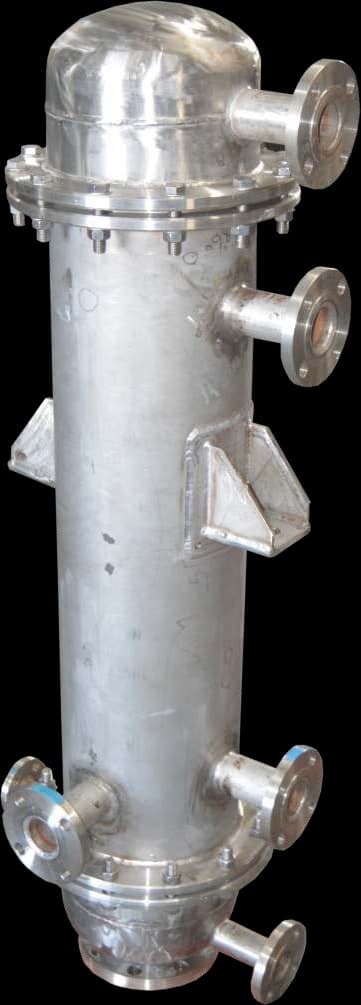

Our multi-effect evaporator (MEE) systems achieve high energy efficiency by reusing steam vapour across multiple effects. Used extensively for concentrating liquid effluents, producing ZLD (zero liquid discharge), recovering valuable materials from dilute streams, and concentrating food & pharmaceutical products. We design 2-effect to 7-effect systems with falling film, forced circulation, or rising film evaporator bodies.
Operating envelope
Engineering specification matrix
Indicative ranges for RFQ discussion — not guaranteed catalogue limits.
| Design parameter | Standard range | Heavy duty / custom | Compliance |
|---|---|---|---|
| Concentration ratio | Per process simulation | ZLD train integration | Client mass balance |
| Effects | 2 to 5 effects typical | Custom circulation design | Fouling / viscosity on RFQ |
| TVR | Steam jet thermocompressor | Hybrid MEE + TVR | Utility survey |
Fabrication
Built for this product at Vadodara
Calandria, vapour bodies and condensers built at Vadodara; circulation pumps by buyer or as specified.
Industries served
Related equipment
FAQ
Technical answers — Multi Effect Evaporators
- What is the steam economy of a multi-effect evaporator?
- Steam economy depends on the number of effects, boiling-point elevation and the heat-and-material balance. We do not publish a single catalogue economy. Send feed rate, concentrations and available steam so the train can be engineered.
- Can MEE systems be used for zero liquid discharge (ZLD)?
- Yes. Multi-effect evaporators are a core component of ZLD systems, concentrating effluent for final crystallization or evaporation to dryness. We design complete ZLD trains.
- TVR vs MVR for ZLD?
- TVR uses motive steam to recompress vapour — attractive when HP steam is available. MVR uses electrical drives. We size TVR packages when the enquiry defines steam conditions; we do not assume a single ZLD architecture.
Engineering RFQ
Request an engineering quotation — Multi Effect Evaporators
Process parameters below help our engineers qualify the duty before reply. Or email info@ohmengineers.co.in · +91 83470 19128/22
WHAT TO SEND
- Configuration: Multi-effect train as specified on the enquiry
- Duty: Evaporation rate, steam economy and effect count defined per process case
- Bodies: Falling film, forced circulation or rising film when specified
- Process datasheet or purchaser drawing if available
- Design code and inspection requirements (ITP)
RESPONSE TIME
We reply by email. If data is incomplete, we list missing fields before commercial offer. Engineering review is not an instant catalogue price.
